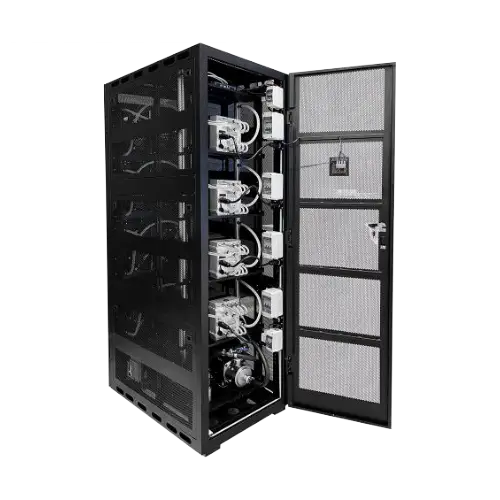

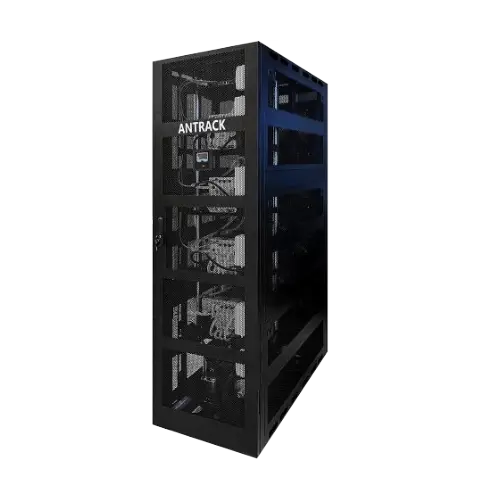

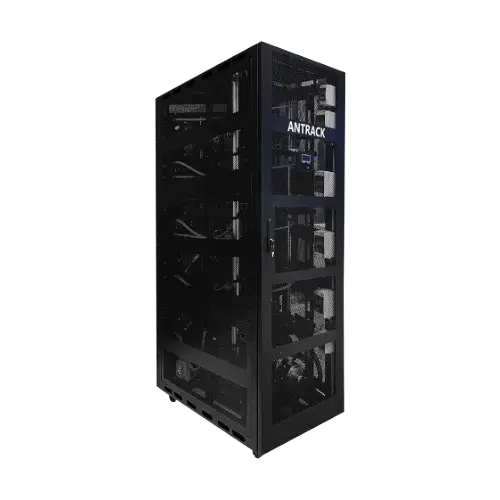

Bitmain ANTRACK V1 24 kW (Hydro Mining Rack) for ASIC Miners
2 950€
The Bitmain ANTRACK V1 is an integrated hydro mining rack designed to accommodate up to four compatible hydro-cooled ASIC miners. It features a built-in pump, heat exchanger, fans and closed-loop liquid-cooling system, with a specified maximum cooling capacity of 24 kW. Designed for professional mining installations, it combines miner housing and cooling in one cabinet. Contact us to confirm compatibility and installation requirements before ordering.
| Bitmain ANTRACK V1 – Technical Specifications | : |
|---|---|
| Manufacturer | Bitmain |
| Model | ANTRACK V1 |
| Product type | Integrated hydro mining rack |
| Maximum cooling capacity | 24 kW |
| Miner capacity | Up to 4 compatible hydro-cooled ASIC miners |
| Compatible series | Selected Antminer S19 Hydro and S21 Hydro models |
| Power supply | 380–415 V AC, three-phase |
| Frequency | 50–60 Hz |
| Maximum input current | 80 A |
| Network connection | RJ45 Ethernet, 10/100 Mbps |
| Cabinet dimensions | 1,060 × 600 × 2,125 mm |
| Weight | Approximately 200 kg |
| Cooling System Specifications | : |
| Cooling components | Integrated pump, heat exchanger and fans |
| Cooling circuit | Closed-loop liquid cooling |
| Operating ambient temperature | 15–45°C |
| Coolant pH | 7.8–8.5 |
| Relative humidity | 10–90% RH |
| General Hydro Miner Operating Specifications | : |
| Operating temperature | 0–40°C |
| Coolant inlet temperature | 20–40°C |
| Coolant flow rate | 8 L/min ±10% per miner |
| Maximum coolant pressure | 3.5 bar |
| Storage temperature | −20 to 70°C |
| Operating humidity | 10–90% RH, non-condensing |
| Miner power supply | Three-phase, depending on model |
| Cooling equipment power supply | Single-phase, depending on configuration |
The Bitmain ANTRACK V1 Hydro Mining Rack is an integrated liquid-cooling cabinet designed for ASIC miners with hydro cooling. Unlike conventional external hydro-cooling units, it houses both the miners and the cooling system in a single cabinet, providing a compact solution for professional cryptocurrency mining operations.

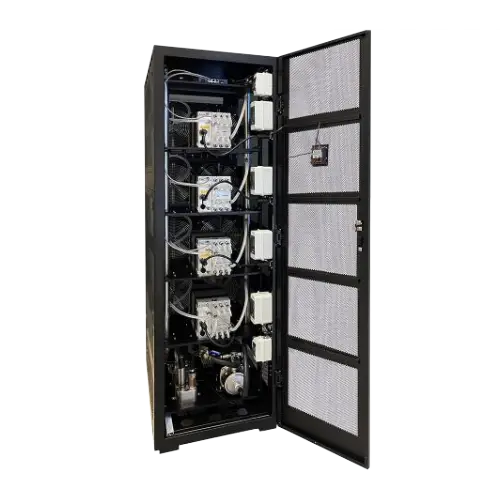

The system includes a circulating coolant loop, pump, heat exchanger and fans, with space for up to four compatible hydro-cooled ASIC miners. Supported hardware may include selected Bitmain Antminer S19 Hydro and S21 Hydro models, subject to model-specific compatibility requirements.
Key Features and Benefits
- Integrated hydro cooling: The cooling system is built into the mining cabinet.
- Up to four hydro miners: Designed to accommodate compatible ASIC mining hardware.
- Up to 24 kW cooling capacity: The specified maximum cooling capacity is not the system’s electrical power consumption.
- Integrated cooling components: Includes a pump, heat exchanger, fans and a closed liquid-cooling circuit.
- Centralised setup: Cooling, miner housing, power distribution and network connectivity are integrated into one system.
- Potential heat recovery: Waste heat may be reused for building heating, water heating or other suitable applications with an appropriate installation.
Installation and Operating Requirements
The ANTRACK V1 requires correct installation and compliance with the relevant electrical and cooling specifications.
- Use an appropriate coolant, such as a manufacturer-approved antifreeze mixture or deionised water, as specified for the system.
- Avoid prolonged use of untreated tap water.
- Maintain the recommended coolant flow rate, pressure and temperature.
- Ensure the installation has a suitable three-phase power supply.
- Verify the required voltage, current capacity and electrical protection before connecting the equipment.
- Monitor coolant quality and conductivity, and replace the coolant when required by the manufacturer’s maintenance guidelines.
Important: Hydro-cooling systems require careful planning and installation. Confirm compatibility with your exact miner models, electrical infrastructure and cooling requirements before purchasing.
For long-term operation, we also recommend considering a professional ASIC miner hosting solution with suitable cooling, filtration and technical support.
Need help choosing the right setup? Contact us before ordering. We can help you assess miner compatibility and plan a suitable hydro-mining installation.
keywords: Bitmain ANTRACK V1, ANTRACK V1 hydro mining rack, Bitmain hydro mining cabinet, hydro mining rack, ASIC hydro cooling system, ASIC miner liquid cooling, hydro cooled ASIC miners, Antminer S19 Hydro cooling, Antminer S21 Hydro cooling, 24 kW hydro cooling system, integrated mining cooling cabinet, cryptocurrency mining equipment, professional Bitcoin mining setup, ASIC liquid cooling cabinet, Bitmain mining rack
